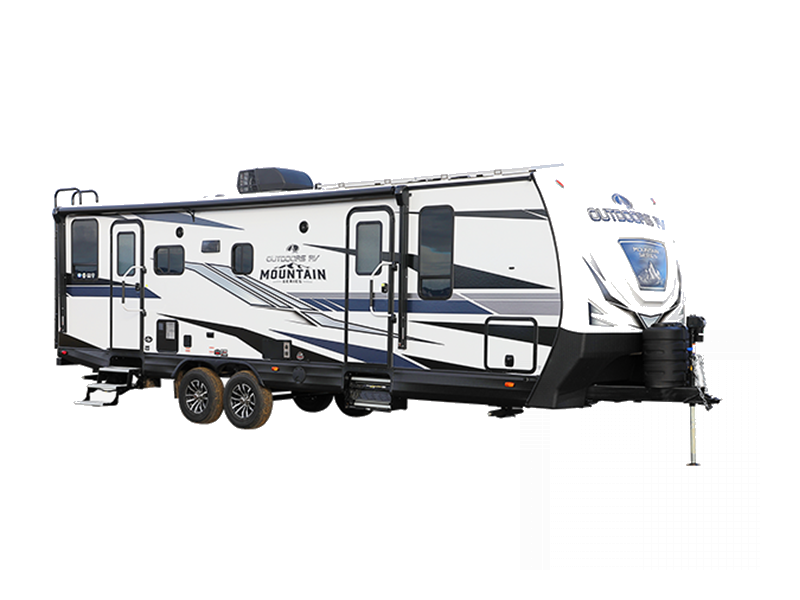

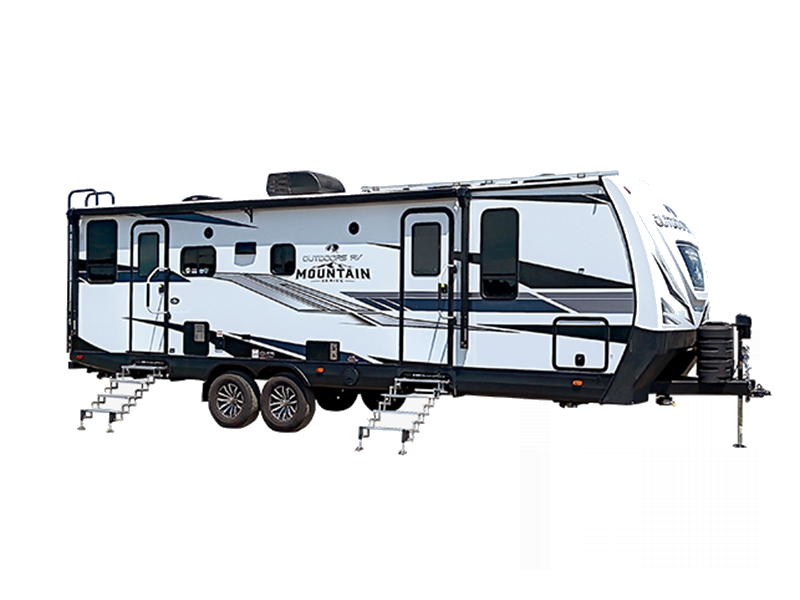

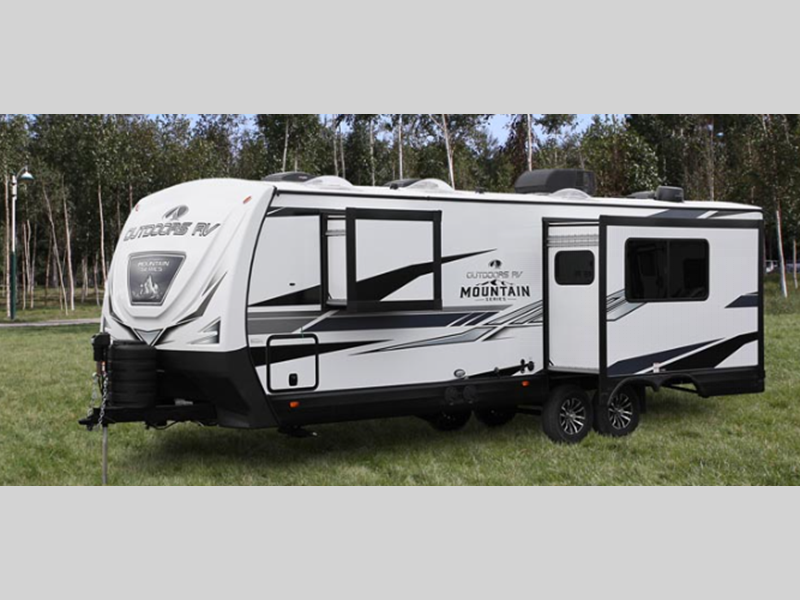

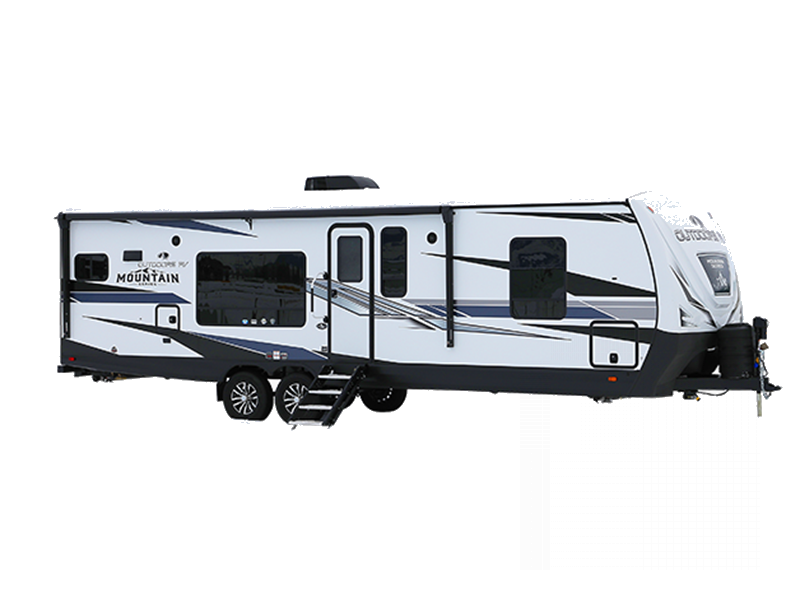

Outdoors RV Black Stone Mountain Series Travel Trailer

Previous
Next
1 of 84

The Black Stone Mountain Series travel trailers by Outdoors RV are made for mountain tough camping and designed for the outdoor enthusiast that enjoys camping during any season. If you choose to travel to a National Forest, State Park, or even off-grid, you will find all the comforts of home in any Timber Ridge.



Each model is built with an integrated HD A-frame chassis construction for greater ground clearance, triple layered Four Seasons roof insulation, mountain extreme thermal pane windows, a fiberglass front cap, and Climate Designed Four Season camping to mention a few exterior features. Some interior features that will impress include a vaulted radius ceiling, Ultra-leather dinette cushions, residential height countertops, and Rustic Knotty Alder Mountain cabinetry.



When it's time to venture outdoors in any climate, choose your favorite Black Stone Mountain Series travel trailer by Outdoors RV for your next comfortable adventure!

  • Black Stone Mountain Series 250RDS

    Black Stone Mountain Series 250RDS Floorplan Image

    Outdoors RV Black Stone Mountain Series 250RDS travel trailer highlights: Dual ... more about Black Stone Mountain Series 250RDS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 32 ft 2 in
    Ext Height 11 ft 5 in
    Int Height 6 ft 11 in
    Interior Color Carmel Toffee, Hot Chocolate
    Hitch Weight 900 lbs
    Gross Weight 11000 lbs
    Dry Weight 7295 lbs
    Cargo Weight 3705 lbs
    Fresh Water Capacity 80 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 50 gals
    Tire Size ST235/80/16E
    Furnace BTU 35000 btu

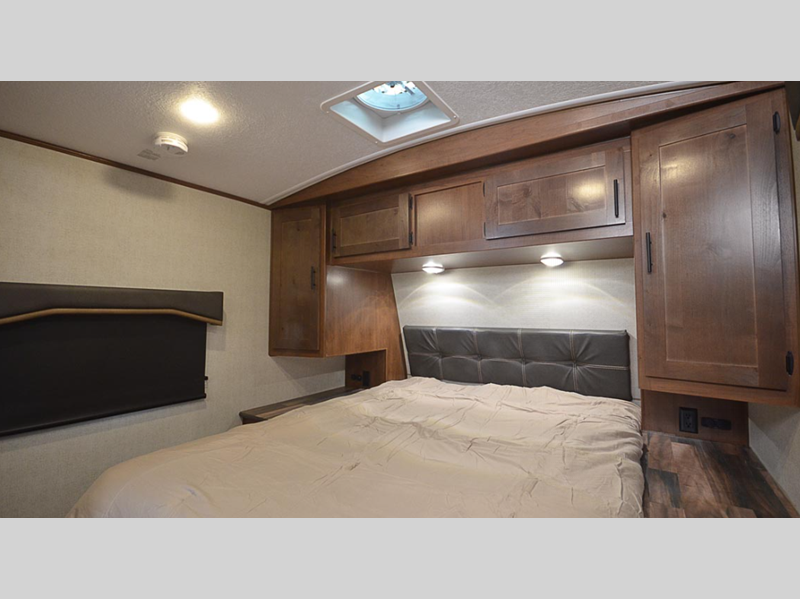

    Available Beds Queen
    Refrigerator Size 8 cu ft

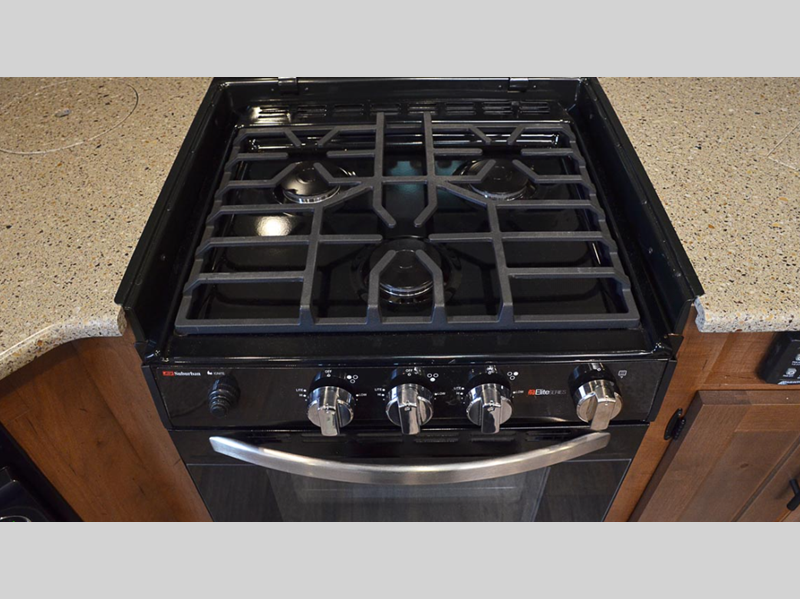

    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 5200 lbs
    LP Tank Capacity 60 lbs.
    Water Heater Capacity 10 gal.
    Water Heater Type DSI
    AC BTU 13500 btu
    TV Info LR 12 Volt LED HD
    Awning Info 21' Adjustable Pitch XL Electric
    Axle Count 2

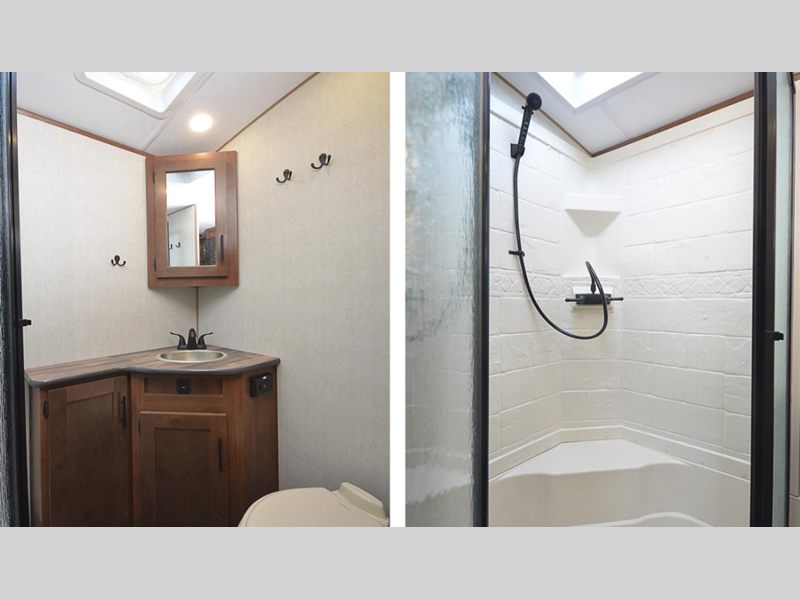

    Shower Type Neo-Angled

    Similar Floorplans

  • Black Stone Mountain Series 250RKS

    Black Stone Mountain Series 250RKS Floorplan Image

    Outdoors RV Black Stone Mountain Series 250RKS travel trailer highlights: Two ... more about Black Stone Mountain Series 250RKS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 2
    Length 31 ft 1 in
    Ext Height 11 ft 5 in
    Int Height 6 ft 11 in
    Interior Color Carmel Toffee, Hot Chocolate
    Hitch Weight 895 lbs
    Gross Weight 11000 lbs
    Dry Weight 7375 lbs
    Cargo Weight 3625 lbs
    Fresh Water Capacity 80 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 50 gals
    Tire Size ST235/80/16E
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 5200 lbs
    LP Tank Capacity 60 lbs.
    Water Heater Capacity 10 gal.
    Water Heater Type DSI
    AC BTU 13500 btu
    TV Info LR 12 Volt LED HD
    Awning Info 21' Adjustable Pitch XL Electric
    Axle Count 2
    Shower Type Neo-Angled

    Similar Floorplans

  • Black Stone Mountain Series 260RLS

    Black Stone Mountain Series 260RLS Floorplan Image

    Outdoors RV Black Stone Mountain Series 260RLS travel trailer highlights: Dual ... more about Black Stone Mountain Series 260RLS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 31 ft 9 in
    Ext Height 11 ft 5 in
    Int Height 6 ft 11 in
    Interior Color Carmel Toffee, Hot Chocolate
    Hitch Weight 775 lbs
    Gross Weight 11000 lbs
    Dry Weight 7395 lbs
    Cargo Weight 3605 lbs
    Fresh Water Capacity 82 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 50 gals
    Tire Size ST235/80/16E
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 5200 lbs
    LP Tank Capacity 60 lbs.
    Water Heater Capacity 10 gal.
    Water Heater Type DSI
    AC BTU 13500 btu
    TV Info LR 12 Volt LED HD
    Awning Info 21' Adjustable Pitch XL Electric
    Axle Count 2
    Shower Type Neo-Angled

    Similar Floorplans

  • Black Stone Mountain Series 270RKS

    Black Stone Mountain Series 270RKS Floorplan Image

    Outdoors RV Black Stone Mountain Series 270RKS travel trailer highlights: Three ... more about Black Stone Mountain Series 270RKS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 3
    Length 33 ft 11 in
    Ext Height 11 ft 5 in
    Int Height 6 ft 11 in
    Interior Color Carmel Toffee, Hot Chocolate
    Hitch Weight 1115 lbs
    Gross Weight 11000 lbs
    Dry Weight 8100 lbs
    Cargo Weight 2900 lbs
    Fresh Water Capacity 80 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 50 gals
    Tire Size ST235/80/16E
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 5200 lbs
    LP Tank Capacity 60 lbs.
    Water Heater Capacity 10 gal.
    Water Heater Type DSI
    AC BTU 13500 btu
    TV Info LR 12 Volt LED HD
    Awning Info 13' Adjustable Pitch XL Electric
    Axle Count 2
    Shower Type Neo-Angled

    Similar Floorplans

  • Black Stone Mountain Series 270RLS

    Black Stone Mountain Series 270RLS Floorplan Image

    Outdoors RV Black Stone Mountain Series 270RLS travel trailer highlights: Two ... more about Black Stone Mountain Series 270RLS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 34 ft 8 in
    Ext Width 0 ft
    Ext Height 11 ft 5 in
    Int Height 6 ft 11 in
    Interior Color Carmel Toffee, Hot Chocolate
    Gross Weight 11000 lbs
    Fresh Water Capacity 80 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 50 gals
    Tire Size ST235/80/16E
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 5200 lbs
    LP Tank Capacity 60 lbs.
    Water Heater Capacity 10 gal.
    Water Heater Type DSI
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    TV Info LR 12 Volt LED HD
    Awning Info 21' Adjustable Pitch XL Electric
    Axle Count 2
    Shower Type Neo-Angled

    Similar Floorplans

  • Black Stone Mountain Series 280RKS

    Black Stone Mountain Series 280RKS Floorplan Image

    Outdoors RV Black Stone Mountain Series 280RKS travel trailer highlights: Two ... more about Black Stone Mountain Series 280RKS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 34 ft 3 in
    Ext Height 11 ft 5 in
    Int Height 6 ft 11 in
    Interior Color Carmel Toffee, Hot Chocolate
    Hitch Weight 995 lbs
    Gross Weight 11000 lbs
    Dry Weight 8050 lbs
    Cargo Weight 2950 lbs
    Fresh Water Capacity 80 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 50 gals
    Tire Size ST235/80/16E
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 5200 lbs
    LP Tank Capacity 60 lbs.
    Water Heater Capacity 10 gal.
    Water Heater Type DSI
    AC BTU 13500 btu
    TV Info LR 12 Volt LED HD
    Awning Info 21' Adjustable Pitch XL Electric
    Axle Count 2
    Shower Type Neo-Angled

    Similar Floorplans

Black Stone Mountain Series Features:

Standard Features



Climate Designed Four Seasons Package

  • Mountain Extreme Thermal Pane Windows
  • Designed for Mountain States & Western Canada
  • Triple Layered Four Seasons Roof Insulation
  • Fully Enclosed Heated Insulated Underbelly
  • Insulation Wrapped Holding Tanks
  • 1" Thick Thermal Insulated Luggage Doors
  • Thermal Insulated Bedroom Ceiling Vent
  • XL Furnace for Extreme Camping Heat System
  • Norcold (Refrigerator) Cold Weather Kit - Operation Down to - 0 F
  • Exterior Shower Protected by 1" Insulated Door
  • Semi-Auto Winterization System

Outdoors "Mountain Tough" Construction

  • 1.2.3 Built Outdoors Tough Warranty
  • Rugged 2" Bonded Aluminum Frame Walls (All Walls) (USA & Canada Sourced Material)
  • Laminated Aluminum Frame Slide-Out (All Walls & Ceiling)
  • Laminated Fiberglass Slide-Out Floor
  • HD Fiberglass Front Cap w/ Armor Guard & Diamond Plate Protection
  • Eco-Friendly Laminated Wall Cut-Outs in Dinette
  • Trekk "Outdoors Tough" Flooring - 3 Yr Cold Cracking Warranty to -50

Outdoors "Off Road Performance"

  • Custom Built Off Road Chassis (USA Sourced Steel)
  • 8" HD Rugged I-Beam
  • Integrated HD A-Frame Chassis Construction (Greater Ground Clearance)
  • Shock Absorbers w/ HD Shock Plate
  • 15" Rugged Mud Flaps
  • Off Road "Screw Fastened" Clearance Lights
  • Rugged "Armor Guard" Protected Bumper
  • Roto-Torqued "Outdoors Tough" Cabinetry (All Cabinets)
  • Radius Crowned Full Walk On Roof w/ Rear Ladder
  • Exterior Grade Tongue & Groove Plywood Sub-Floor
  • Marine Grade Plywood Roof Decking
  • Full Extension 100lb Metal Drawer Guides
  • Heavy Duty 6 Lug 5200 LB Axles w/ Off Road Brake System
  • Off Road X4 Suspension Package (Optional): Monroe HD Gas Shocks, MorRyde CRE 3000 Suspension (3" of Addtl Vertical Travel), MorRyde Shackle Kit w/ Bronze Bushings & Greaseable Fittings
  • 16" GoodYear 235 E Range 10 Ply Radial Tires (Made in the USA)

Outdoors "Off Grid Camping"

  • Battery Disconnect w/ Trickle Charging Roof Mounted Solar Panel
  • Off-Grid Solar Ready Roof Port for up to 500 Watts
  • Door Side Portable Solar Panel Port for up to 200 Watts
  • Energy Saving LED Interior & Exterior Lights
  • Patio Area & Entry Steps Lighted by LED Awning Strip Light
  • 78+ Gallon Fresh Water Capacity
  • 12 Volt LED HD Living Room TV's w/ HDMI Bluetooth DVD Sound System
  • 12 Volt Triple Charge Station (Charges I-Pads and Cell Phones)
  • 12 Volt USB Ports on Both Sides of Bed
  • LED Hitch Light by Battery Rack
  • Off-Grid 160 Wall Solar w/ Controller (Optional)
  • Off-Grid 320 Watt Solar w/ Controller (Optional)
  • Off-Grid Battery Rack (Capacity: 4 Batteries) (Batteries Sold After Market) (Optional)
  • 2 Battery Rack Capacity (Fits 6 Volt Batteries)

Outdoors "Rugged Oregon Mountains" Exterior

  • Weather Guard Metal Awning Shield
  • Tread Lite Aluminum HD Entry Steps
  • Metal Designed Slam Latch Luggage Doors
  • Magnet Luggage Door Catches (Easy One Hand Operation)
  • HD Power Tongue Jack w/ LED Light
  • "Outdoors Style" BBQ Hookup Propane Bib & 12' Hose
  • Marine Grade Exterior Speakers
  • Aluminum Wheels
  • Main Luggage Compartment Lighting
  • Friction Hinge Wind Resistant Entry Door(s)
  • XL Grab Bar Handle - White (Main Entry Door)
  • Black Tank Flush
  • Adjustable Pitch XL Electric Awning w/ Rain Dump Arm
  • Attic Vent
  • Roadside Utility Light
  • Color Coordinated Gray & Black Dump Valves
  • Ozite Insulated Luggage Compartments
  • Rugged Rubber Diamond Plate Luggage Compartment Flooring
  • No Turning Designed TV Ant
  • Slide-Out End Wall Opening Windows
  • Outdoors RV "Built in the Oregon Mountains" Tire Cover
  • Lamilux White Fiberglass
  • 13.5K Coleman Air Conditioner
  • Manual Stabilizer Jacks (Great for Off Road Camping - Easy Use w/ Power Drill)
  • Rear Ladder (Top Line Brand)
  • Mountain Series Graphics Package
  • Black Door Locks & Luggage Door Handles
  • LED Taillights
  • 12 Volt Heat Pad Fresh Water Tank (Optional)
  • Deluxe Maxx Air Vent Fans (Bed, Bath, and/or Kitchen) (Model Specific) (Optional)
  • Mountain Storage System (2' Receiver Hitch & Toy-Lok (Optional)

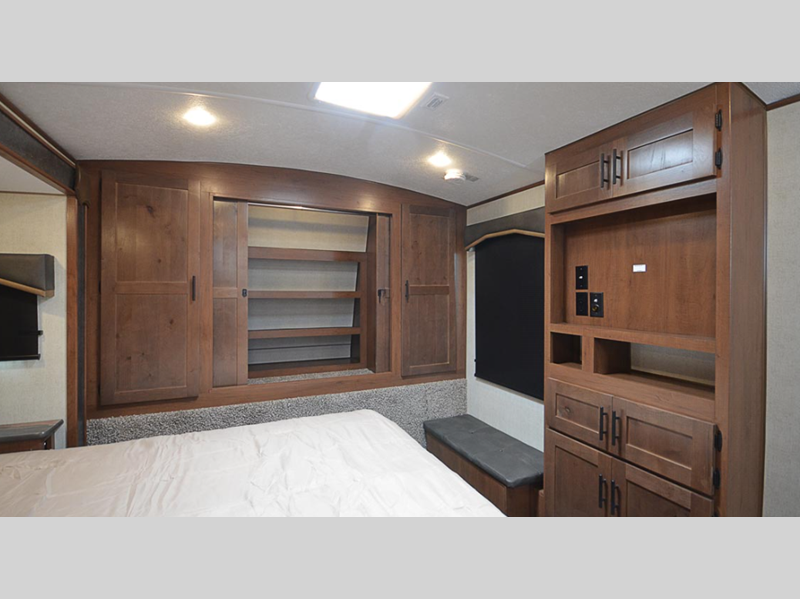

  • Bedroom Wardrobe Slide-Out (260RLS) (Optional)

Outdoors "Oregon Mountains" Interior

  • Carmel Toffee Interior
  • Hot Chocolate Interior

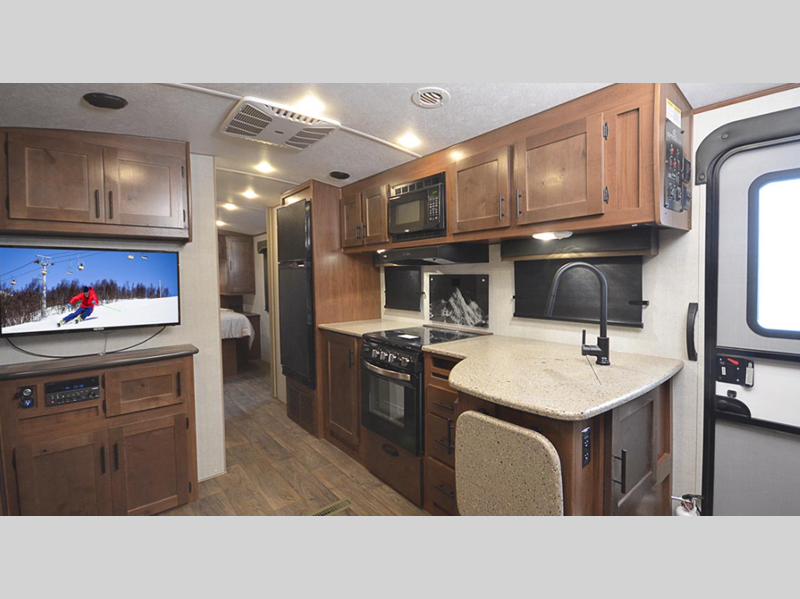

  • Rustic Knotty Alder Mountain Cabinetry
  • Shaker Style Cabinet & Fridge Doors
  • Vaulted Radius Ceiling (Approx 5" of Additional Headroom)
  • Mountain Series Hardwood Plaque
  • LED Energy Saving Interior Lighting
  • Fabric Designed Window Valances
  • Standard Thermostat
  • Nightshades
  • 10 Gallon LP/110V DSI Water Heater w/ Single Lever Bypass

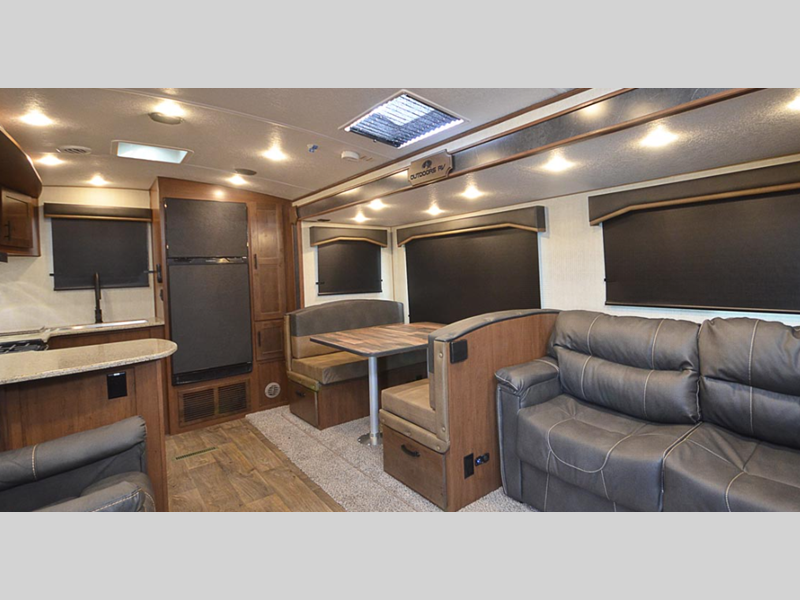

Living Room

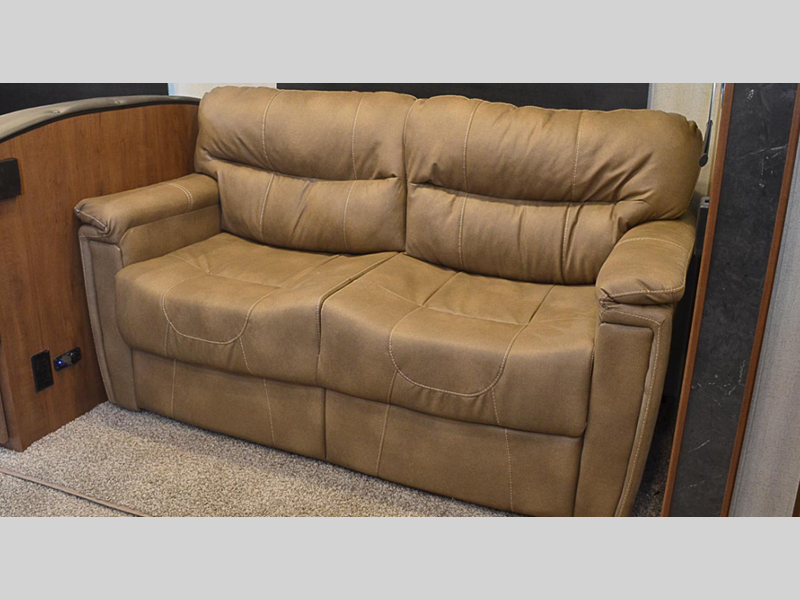

  • Ultra-Leather Tri-Fold Sleeper Sofa (Floorplan Specific)

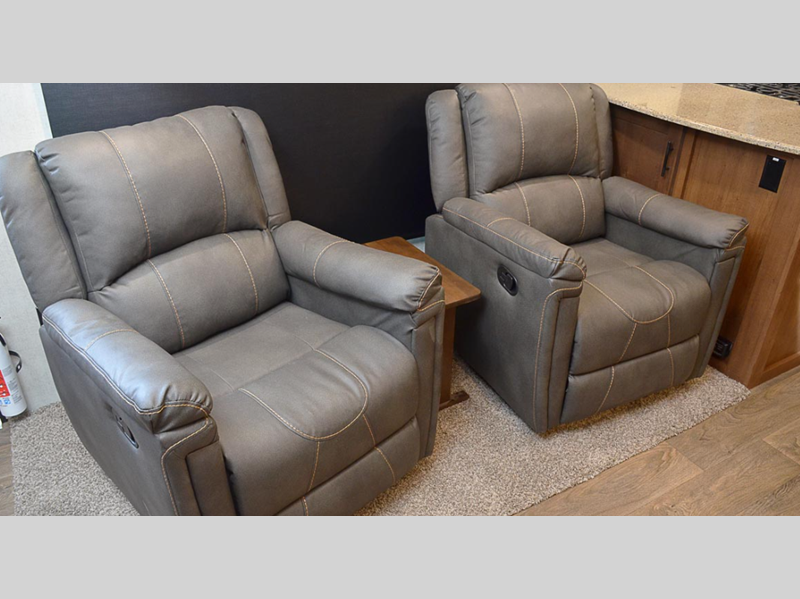

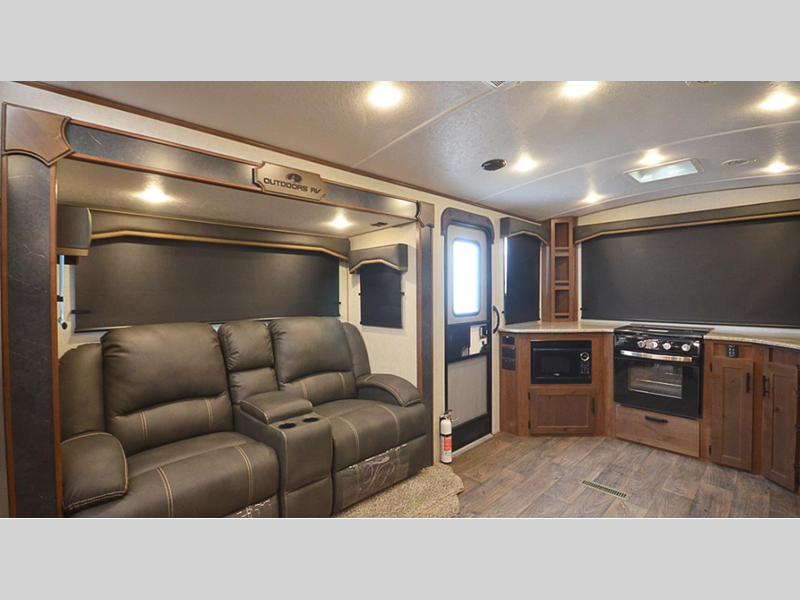

  • Ultra-Leather Lounge Recliners w/ Accent Stitching (Floorplan Specific)
  • Dual Pane Living Room Skylight w/ Shade
  • Outdoors RV Entry Mat
  • 12 Volt LED HD Living Room TV
  • 12 Volt HDMI Bluetooth DVD Sound System w/ USB Port
  • 12 Volt Triple Charge Station (Charges I-Pads & Cell Phones)
  • Rustic Wood Laminate Top Entertainment Center (Where Applicable)

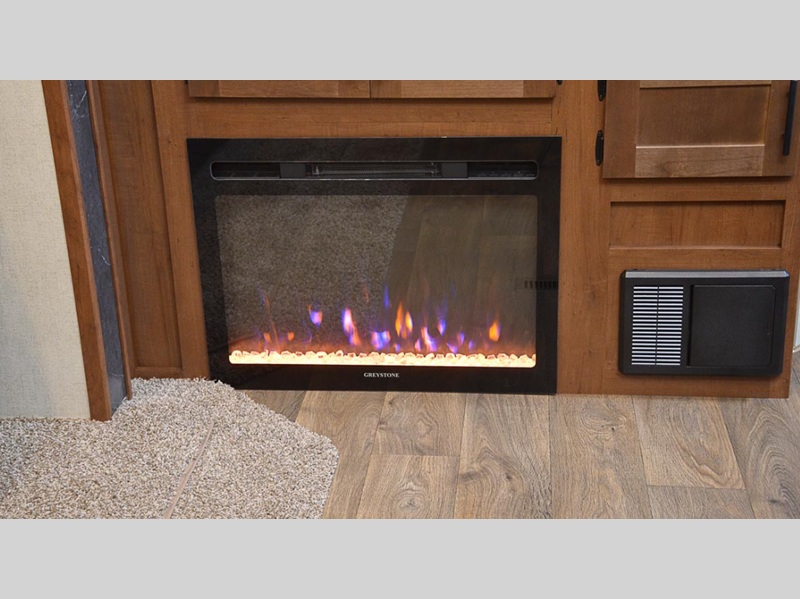

  • Living Room Fireplace (250RDS) (Optional)
  • Living Room Fireplace w/ Rock Surround - Floorplan Specific (Optional)

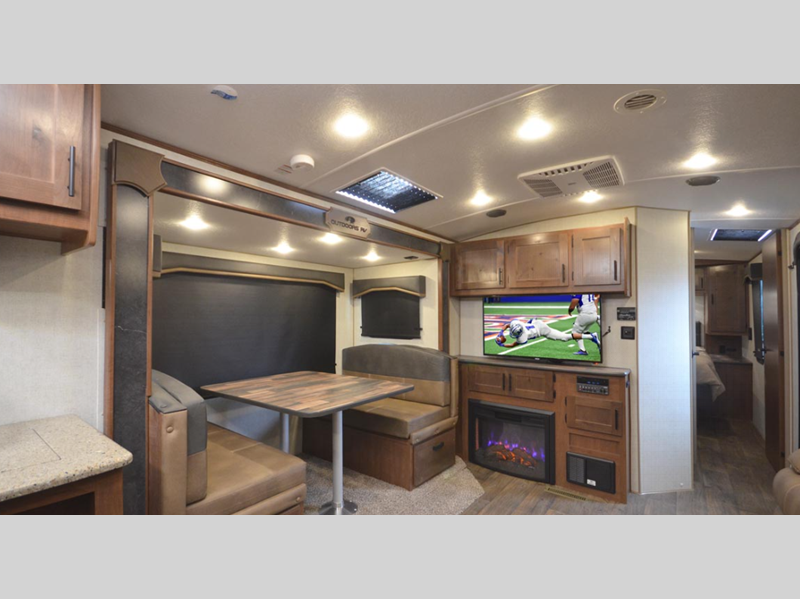

Living Room Slide-Out / Dinette (Model Specific)

  • XL Panoramic Windows (Enjoy the Outdoor Scenery)

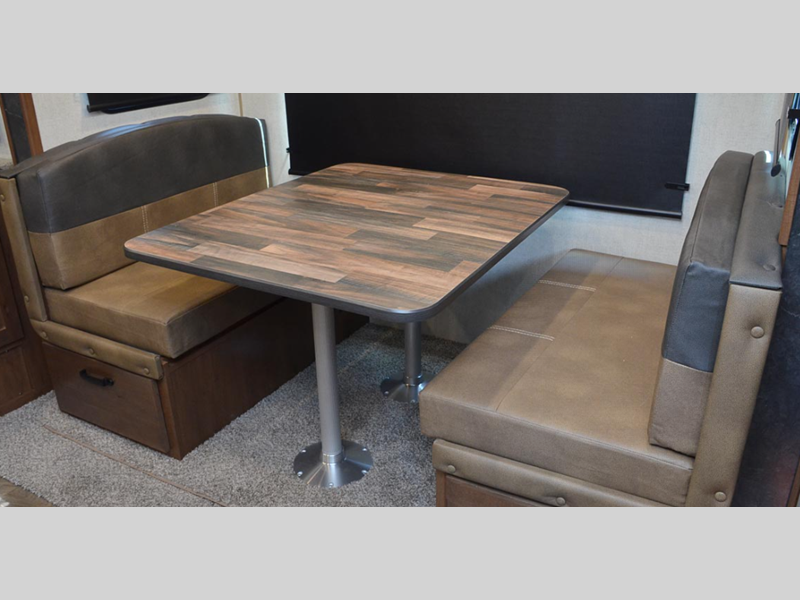

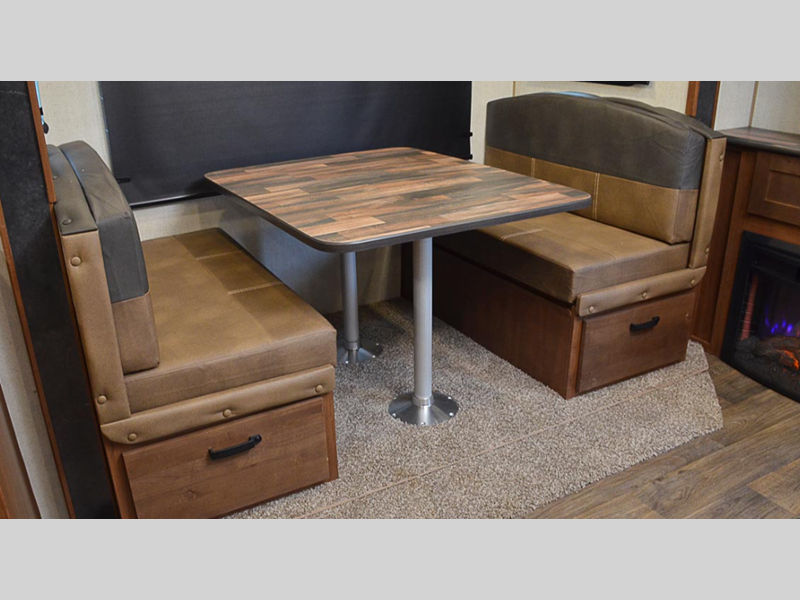

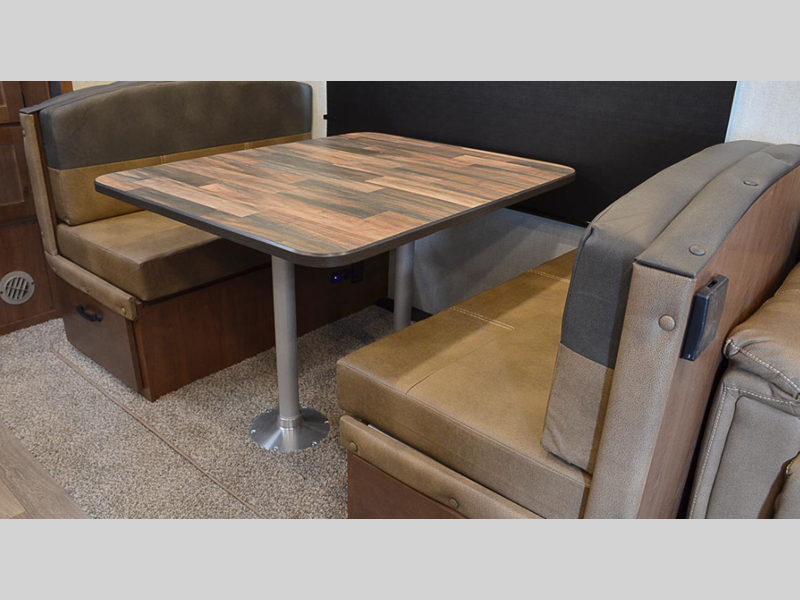

  • Mountain Dinette (Designed for Families and Entertaining)
  • XL Dinette Table (Seating for up to 6 people)
  • Marine Style Sturdy Table Legs
  • Rustic Wood Laminate
  • XL Dinette Drawers (Floorplan Specific)
  • Ultra-Leather Dinette Cushions w/ Accent Stitching
  • Eco-Friendly Laminated Wall Cut-Outs in Dinette
  • 40% Thicker Dinette Cushions (Comfort for Seating and Sleeping)
  • Laminate Designed Slide-Out Fascia Moldings

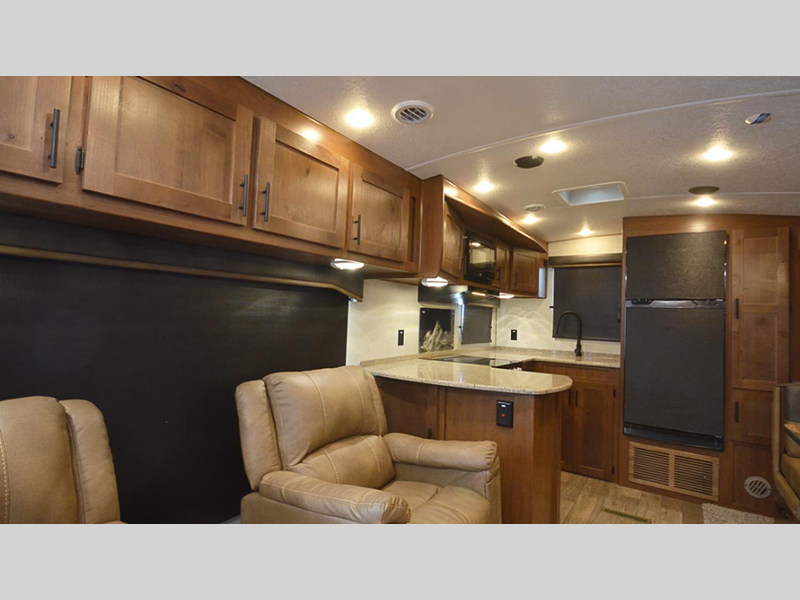

Kitchen

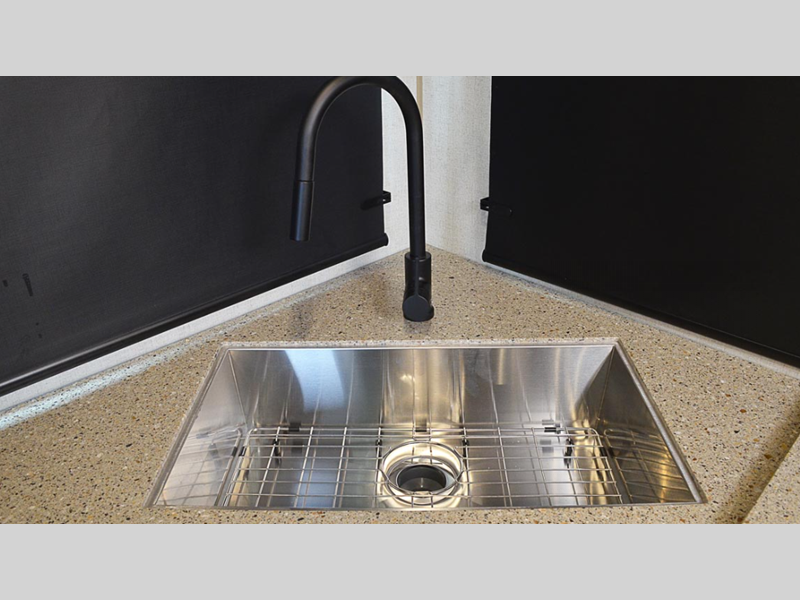

  • LG Solid Surface Galley Countertop w/ Metal Undermount Sink
  • LG Solid Surface Galley Sink Lids
  • Black Microwave and Range Hood
  • Black Sunken Range w/ Sealed Burners, Glass Front and Folding Glass Cover
  • Knife Rack and Granite Designed Backsplash
  • Oil Rubbed Bronze Single Lever Kitchen Faucet w/ Pull Out Sprayer
  • XL (8) Cu Ft Norcold Fridge
  • Residential Height Counter-Tops
  • Full Extension 100 lb Metal Drawer Guides
  • Deluxe Maxx Air Vent Fan w/ Remote (Floorplan Specific) (Optional)

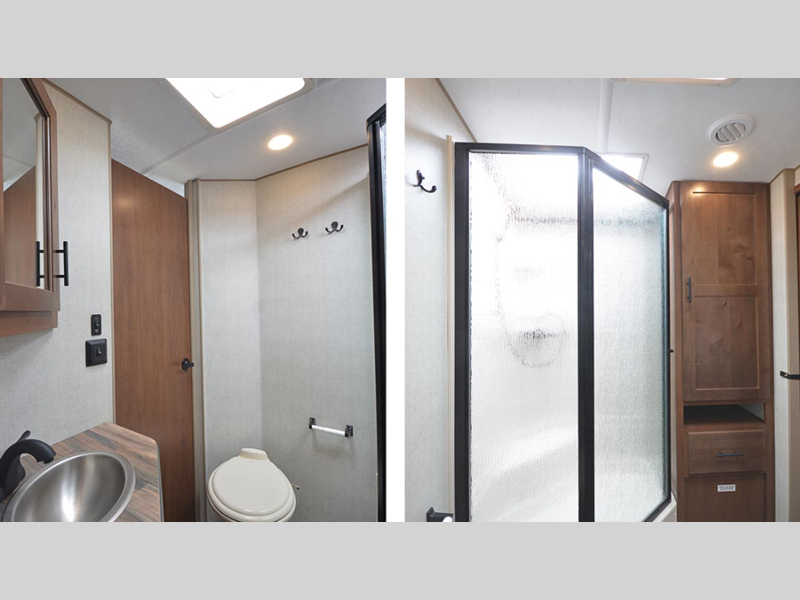

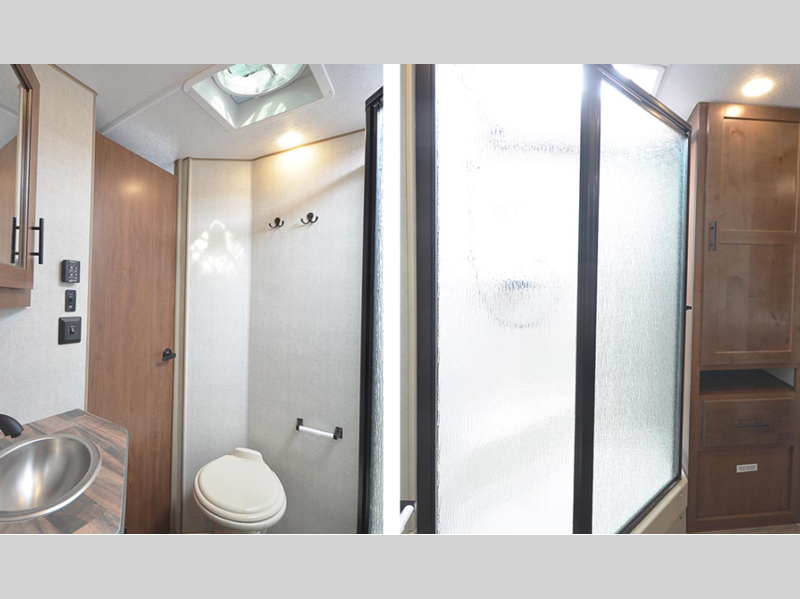

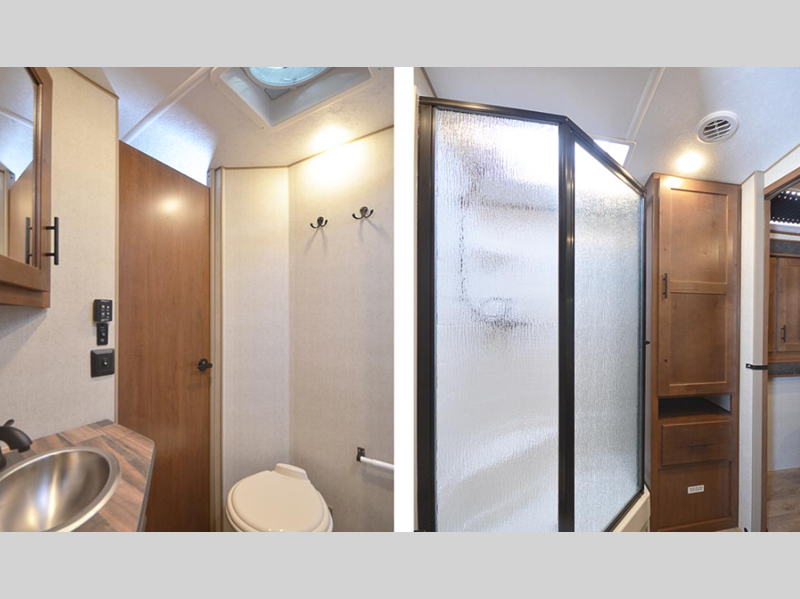

Bathroom

  • Porcelain Toilet
  • Dual Pane Shower Skylight
  • Neo-Angle Glass Shower Enclosure
  • Oil Rubbed Bronze Shower Head and Hose
  • Rustic Wood Laminate Countertop w/ Sink
  • Oil Rubbed Bronze Towel Ring and Toilet Paper Holder
  • Oil Rubbed Bronze Robe / Towel Hooks
  • Deluxe Maxx Air Vent Fan (Wall Switched) (Optional)

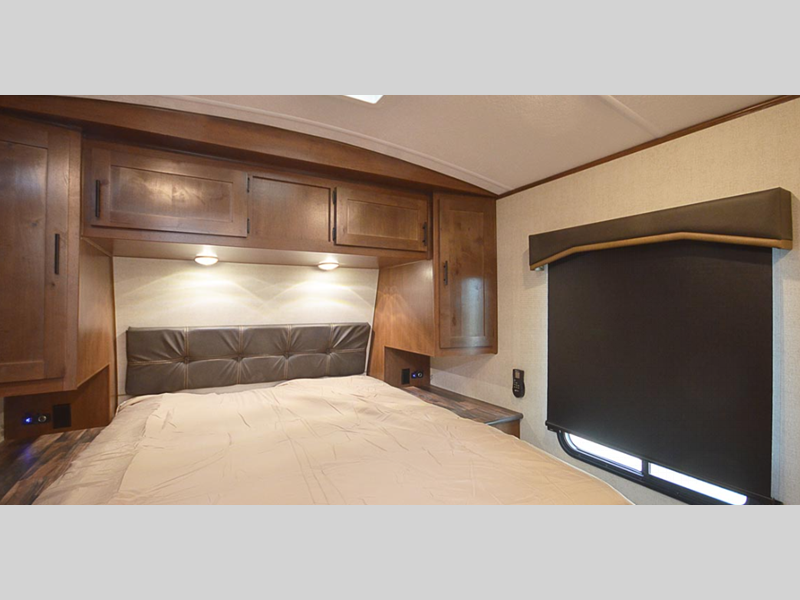

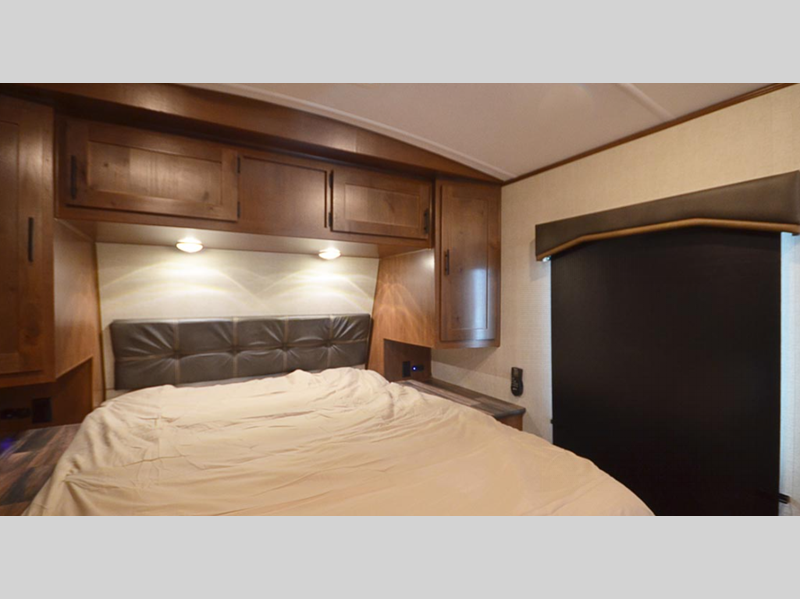

Bedroom

  • Drawers Underneath Bed (Floorplan Specific)
  • 12 Volt USB Ports on Both Sides of Bed
  • Mountain Comfort Euro Top Mattress
  • Bed Comforter
  • LED Lighting
  • Rustic Wood Laminate Nightstand Tops
  • Thermal Insulated Bedroom Ceiling Vent Cover
  • Deluxe Maxx Air Vent Fan w/ Remote (Optional)



See us for a complete list of features and available options!



All standard features and specifications are subject to change.

Manu-Facts:

Outdoors RV Manufacturing was born in 2009 with the vision of owners Ron and Sherry Nash. Our company focus is to design and build recreational vehicles for the customers who desire to enjoy the outdoors, no matter the terrain or weather.  We call it "mountain tough four seasons camping."



Just like the picturesque mountain valley where our factory is located, the RV adventurer of the Western United States and Western Canada will find beautiful pristine alpine lakes, rugged snow capped mountains, lush rain forests, beautiful desert landscapes, and incredible ocean views to explore. We here at Outdoors RV are proud  RV owners and love the outdoor lifestyle in out many adventures we have had customers tell us that they wished a manufacturer would build an RV that was designed for our backyard versus the industry standard that is designed for the pavement and the 3 summer months.



Outdoors answers the call in designing three different series of RV's, two based on how you camp (backcountry series & mountain series) and one being the premium trim package.



Let you outdoor adventures begin!
